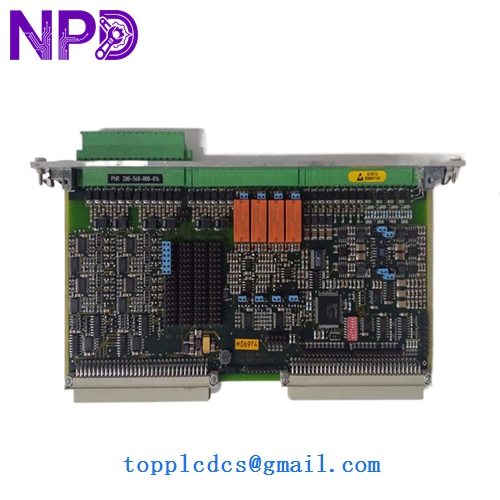

Meggitt Vibro-Meter 200-560-000-016 200-560-101-015 Machinery Protection Card

Description This information covers the MPC4 series monitoring cards, which are the central processing components of the VM600 machinery protection system. Component Identification Part Number Description Specific Function 200-560-000-016 MPC4 Processing Card The main module that performs signal conditioning and processing. 200-560-101-015 IOC4T Input/Output Card The associated rear transition module for terminal connections. Technical Parameters System Series: VM600 (Vibro-Meter) Input Channels: 4 x Dynamic Signal (Vibration, Pressure) and 2 x Tachometer (Speed) Processing: Dual-core architecture for simultaneous protection and condition monitoring. Dynamic Range: > 90 dB Frequency Response: 0.1 Hz to 20 kHz A/D Conversion: 24-bit resolution Operating Voltage: 5V and 12V (from VM600 backplane) Product Description The MPC4 is the “brain” of the Vibro-Meter VM600 rack. It is a four-channel machinery protection card capable of measuring various parameters including vibration (acceleration, velocity, displacement), dynamic pressure, and position. The 200-560-101-015 (IOC4T) is the necessary companion card that sits directly behind the MPC4 in the rack. It provides the physical screw terminals for field wiring and contains the four mechanical relays used for “Alert” and “Danger” shutdowns. This pair is designed to meet the stringent requirements of API 670 and is SIL 2 capable, ensuring high-integrity monitoring for critical rotating assets. Application Areas Power Generation: Vibration monitoring on large steam and gas turbines. Oil & Gas: Protection for centrifugal compressors and high-pressure pumps. Hydro-Power: Air-gap and vibration monitoring on hydroelectric generators. Industrial: Monitoring for large fans, motors, and gearboxes. Operational Precautions Pairing Requirement: An MPC4 card must be used with an IOC4T card. Ensure the part numbers are compatible with your specific system software (MPS) version. Hot-Swapping: While the VM600 supports hot-swapping, it is recommended to “Logic-Inhibit” the slot via software before removal to prevent false trips on the mechanical relays. Terminal Torque: On the IOC4T (200-560-101-015), ensure terminal screws are tightened correctly. Loose connections on vibration sensors can induce high-frequency “noise” that may trigger false alarms. Configuration: The card is fully software-configurable. Use the MPS (Machinery Protection System) software to define sensor sensitivity (mV/g or mV/mil) and alarm setpoints before commissioning. Recommended Similar Product Models Model Number Category Description 200-566-000-012 CMC16 Condition Monitoring Card (16-channel) 200-510-000-115 CPUM Rack Controller and Communications Module 200-560-101-016 IOC4T Enhanced I/O card with additional relay options 200-595-000-013 RLC16 Relay Card (16 mechanical relays) 404-124-000-112 RPS6U Rack Power Supply (Standard 6U)
